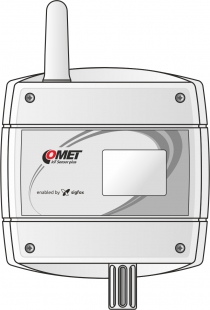

IoT Wireless Temperature, Relative Humidity and CO2 Sensor, powered by Sigfox
The device measures the temperature, relative humidity, dew point and CO2 from built-in sensors.
The measured values are sent in an adjustable time interval (10 min to 24 h) by radio transmission in the Sigfox network to the COMET Cloud, from which the user can view them using a personal computer or mobile device.
The instrument can monitor up to 2 alarm limits of the measured variable. Exceeding these limits is indicated by sending an emergency message. COMET Cloud transmits this alarm message via e-mail to the selected user. The device is suitable for applications that tolerate the delay of information delivered by Sigfox (max. 10 min).
Highlights:
- wireless transmission of measured values and alarm states
- battery power (C size - 3.6 V) with low battery indication (battery life up to 3.5 year)
- input for external power
- remote setting of the device from COMET Cloud (maximum once a day)
- IP20
- Traceable calibration certificate in accordance with EN ISO / IEC 17025
The availability of Sigfox network in a particular location
Check your Sigfox network availability before you buy your device. COMET devices in the Sigfox network can be used anywhere in the RC1 zone. Learn more about Sigfox (RC) Radio Zones.
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeW6810
-
Garantie3 années
Données techniques
Valeurs mesurées
TEMPERATURE SENSOR
HUMIDITY SENSOR
DEW POINT
CO2 SENSOR
GENERAL TECHNICAL DATA
Battery lifetime
| Sending interval | 10 minutes | 20 minutes | 30 minutes | 1 hour | 3 hours | 6 hours | 12 hours | 24 hours |
|---|---|---|---|---|---|---|---|---|
| 1x lithium battery A4206 - 8500mAh | 10 months | 1 year | 1,5 years | 2 years | 3 years | 3,2 years | 3,4 years | 3,5 years |
Accessoires facultatifs
Adaptateur AC / DC 230Vac à 5Vdc / 2.1A, EU
Adaptateur AC / DC 230Vac à 5Vdc / 2.1A, UK
Adaptateur AC / DC 230Vac à 5Vdc / 2.1A, US
Batterie lithium 3,6V / C
Accredited temperature and relative humidity calibration
Accredited CO2 calibration
Sigfox Access Station Micro
câble pour le réglage de l'émetteur via le port USB
Holder for mounting the COMET Transmitter on magnetic surfaces
COMET Cloud
Software
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Safety Information
Declaration of Conformity
Catalogs
CATALOG - IoT Sensors powered by Sigfox
CATALOG - CO2
Catalogue Sheets - COMET Sigfox Sensors
